Large Format 600*1000mm AOQI Paper Folding Machine with Cross Fold for Printing Industry
Product Description:

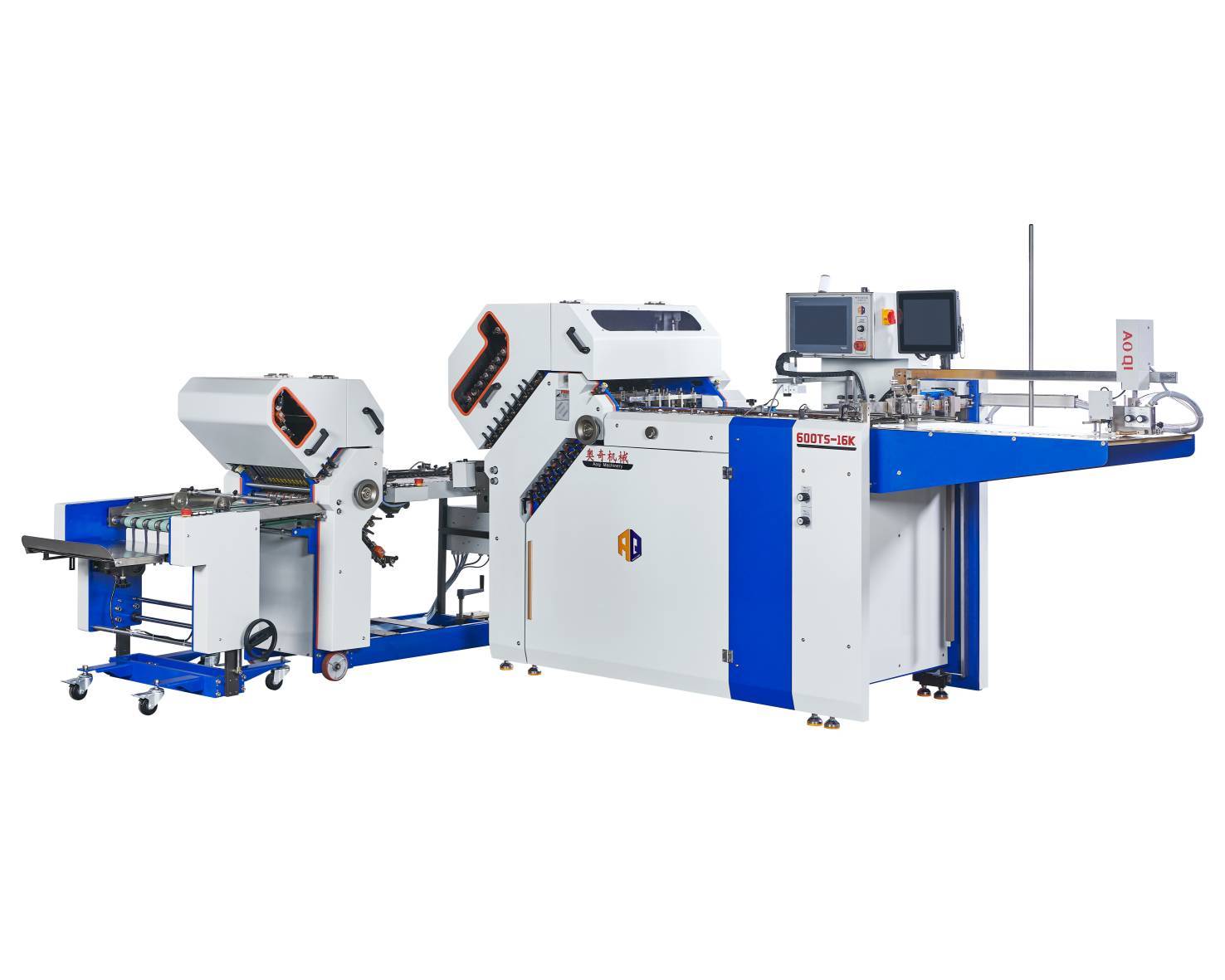

Introducing the 600TS-16K+4KW Outsert Folding Machine – a high-performance pile feeder folder designed for sheets up to 600mm wide and 1000mm long.
Engineered to handle paper weights from 30gsm to 250 gsm, this versatile machine supports a wide range of substrates including bond paper, glossy paper, coated paper, and cardstock.
With its ability to perform single, double, letter, accordion, gate, and parallel folds, the 600TS is perfect for high-precision folding tasks across multiple industries.Equipped with a camera inspection system, it ensures real-time detection of double sheets and enables non-stop operation through automatic rejection of faulty paper — boosting productivity and reliability.
Technical Parameters:
| Max.infeed size | 600*1000mm |
| Min.infeed size | 70*120mm |
| Paper weight | 30-250g |
| Max.speed of folding roller | 220m/min |
| Input power | 380V |
| Total power | 4.85KW |
Features:
1,All the gears and the bearings are imported. Automatic oil supply for the bearing and also for the second station.
2,Equipped with Ultrasonic double-sheet Detection to Identify two or more pieces or sheets inadvertently adhering together.
3,Touch screen Control panel --proprietary software with Independent intellectual property rights for pharmaceutical outsert system.
4,A simple turn of the adjustment dial ;easy to adjust the size,the digital displays are imported from Germany SIKO.
5,Silent Belt Driving,use double bearing structure,driving is much more stable, lower noise.
