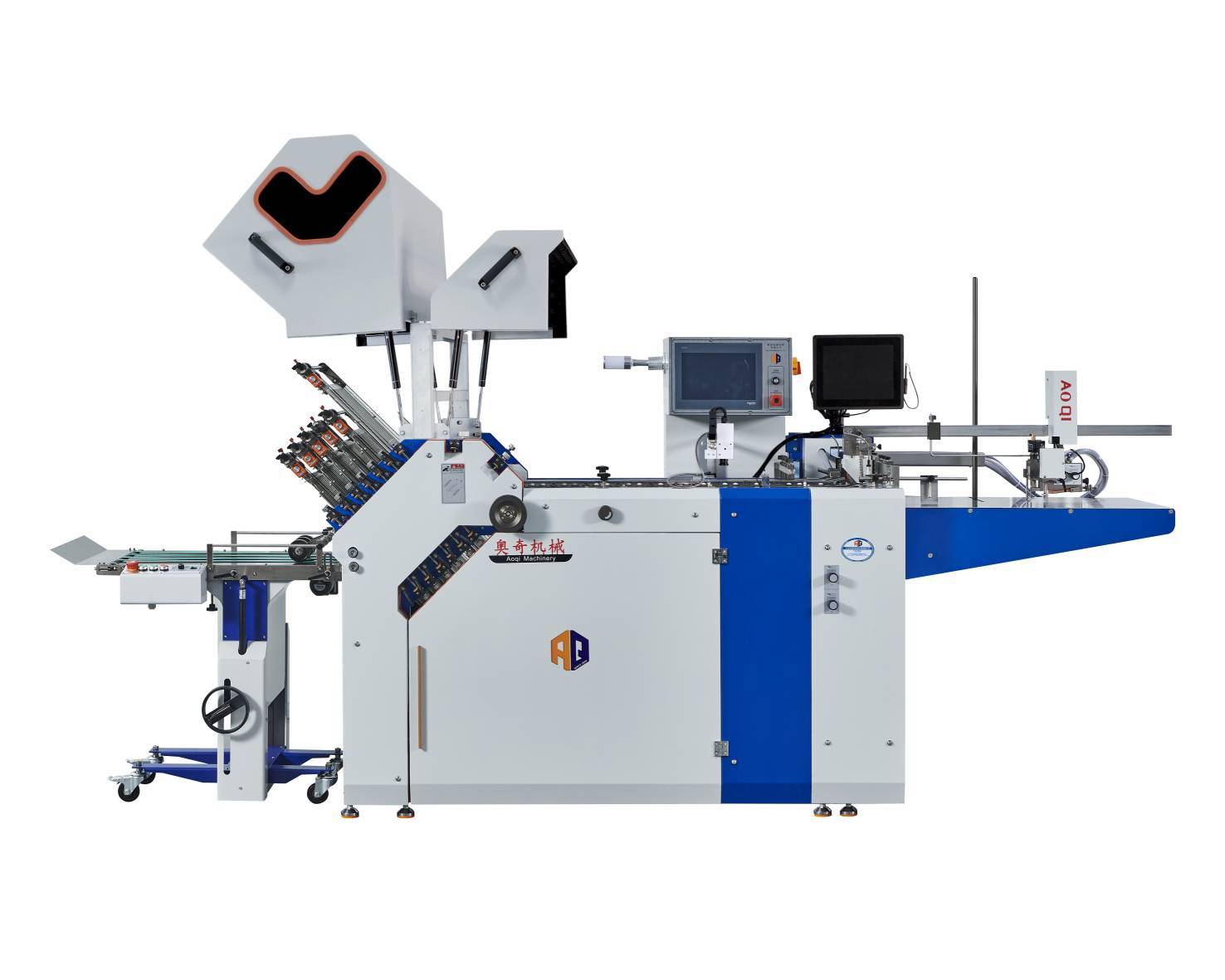

Large Format Inserts Folder with 12 Fold Pharmaceutical Leaflets Inserts Folding Machine
Product Description:
This advanced inserts folding machine is specially designed for pharmaceutical applications requiring high-precision, multi-fold leaflet production. Capable of handling large-format paper, the system supports up to 12 parallel folds, ensuring consistent, accurate results for complex leaflet layouts.
Equipped with both imported touch screen and button control interfaces, the machine allows for intuitive operation and real-time monitoring. Its dual camera positioning system ensures precise paper alignment, while the modular design facilitates easy maintenance and system upgrades.
Ideal for pharmaceutical companies and packaging facilities, this solution delivers unmatched performance for folding patient information leaflets, instruction manuals, and regulatory inserts.
Features:
1,All the gears and the bearings are imported. Automatic oil supply for the bearing and also for the second station.
2,Equipped with Ultrasonic double-sheet Detection to Identify two or more pieces or sheets inadvertently adhering together.
3,Touch screen Control panel --proprietary software with Independent intellectual property rights for pharmaceutical outsert system.
4,A simple turn of the adjustment dial ;easy to adjust the size,the digital displays are imported from Germany SIKO.
5,Silent Belt Driving,use double bearing structure,driving is much more stable, lower noise.
Technical Parameters:
| Max.infeed size | 600*1000mm |
| Min.infeed size | 70*120mm |
| Paper weight | 30-250g |
| Max.speed of folding roller | 220m/min |
| Input power | 380V |
