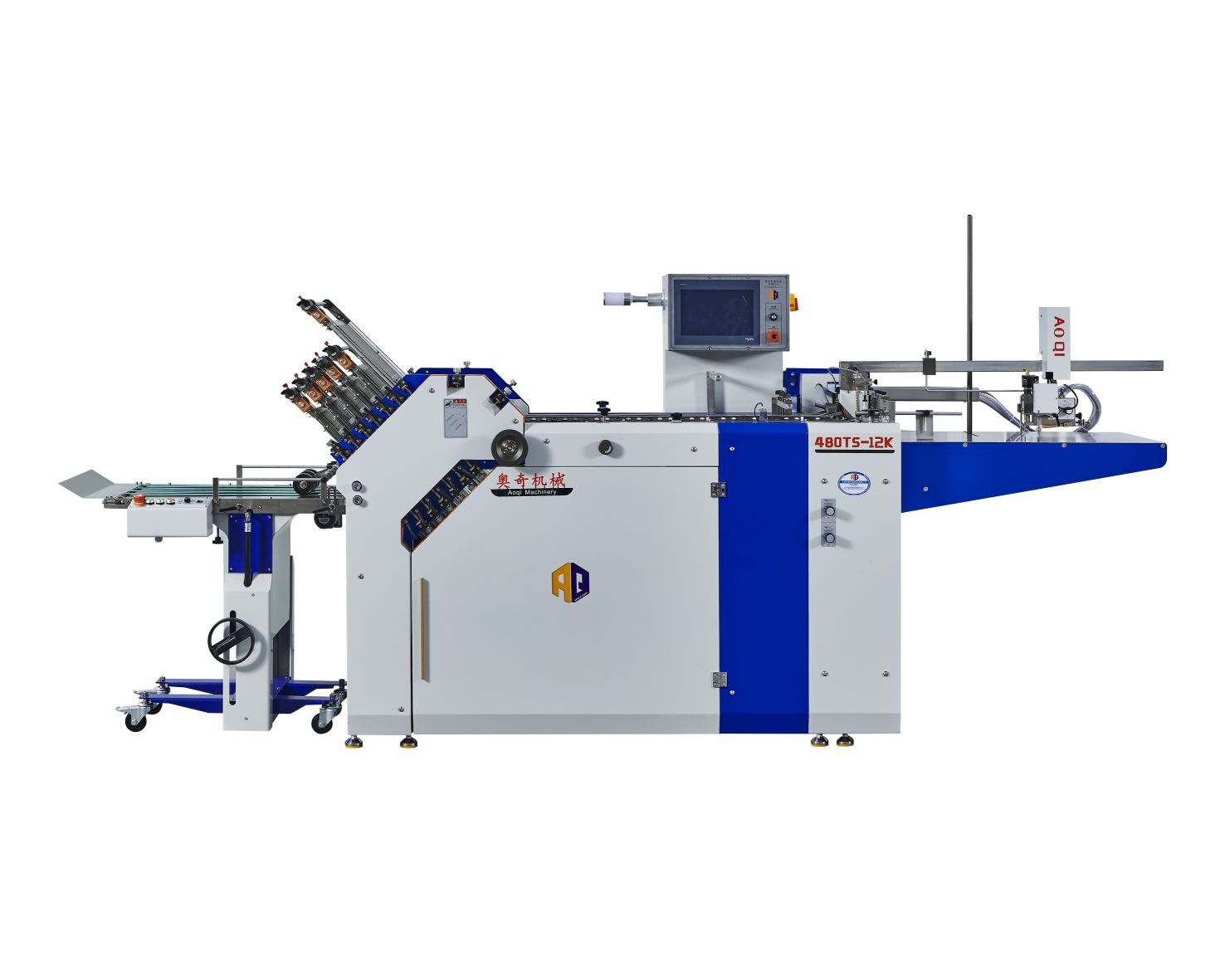

Pharma Leaflets Large Format Width 480mm Inserts Folding Machine With 12 Pockets For Printing Pharma Instruction

Name: Pharma Leaflets Large Format Width 480mm Inserts Folding Machine With 12 Pockets For Printing Pharma Instruction
Brand: AOQI
Price: 1 USD

Brand Name : AOQI

Model Number : 480TS-12K

Certification : CE　certificate

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 700pcs/year

Delivery Time : 15-25days

Packaging Details : wooden box

Max.sheet size : 400*1000mm

Min.sheet size : 70*120mm

Speed : 220m/min

Control Panel : Imported Touch Screen

Driving Way : Belt Driving

Optional unit : Pressing unit、Parallel knife、Labeling machine、vertical stacker

Additional Features : Batch Counting, Camera Inspection System, Jam Detection

Folding Types : Single Fold, Double Fold, Letter Fold, Accordion Fold, Gate Fold,parallel Fold

Packing type : Wooden box

Condition : New

Contact Now

Pharma Leaflets Large Format Width 480mm Inserts Folding Machine With 12 Pockets For Printing Pharma Instruction

Product Description:

This pharmaceutical leaflet folding machine is specially designed for the pharma industry, supporting a maximum paper width of 480mm. Equipped with 12 folding pockets, it can handle complex folding patterns such as Z-fold, C-fold, and pharma folds, meeting various leaflet specifications. The machine runs at high speed with excellent stability, ideal for large-scale continuous production. Its high-precision alignment system ensures accurate folds and minimizes misfeeds or paper jams

Features:

1,All the gears and the bearings are imported. Automatic oil supply for the bearing and also for the second station.

2,Equipped with Ultrasonic double-sheet Detection to Identify two or more pieces or sheets inadvertently adhering together.

3,Touch screen Control panel --proprietary software with Independent intellectual property rights for pharmaceutical outsert system.

4,A simple turn of the adjustment dial ;easy to adjust the size,the digital displays are imported from Germany SIKO.

5,Silent Belt Driving,use double bearing structure,driving is much more stable, lower noise.

Technical Parameters:

Max.infeed size	480*1000mm
Min.infeed size	70*120mm
Paper weight	30-250g
Max.speed of folding roller	220m/min
Input power	380V
